  • Agri-Vac 6614 DLX

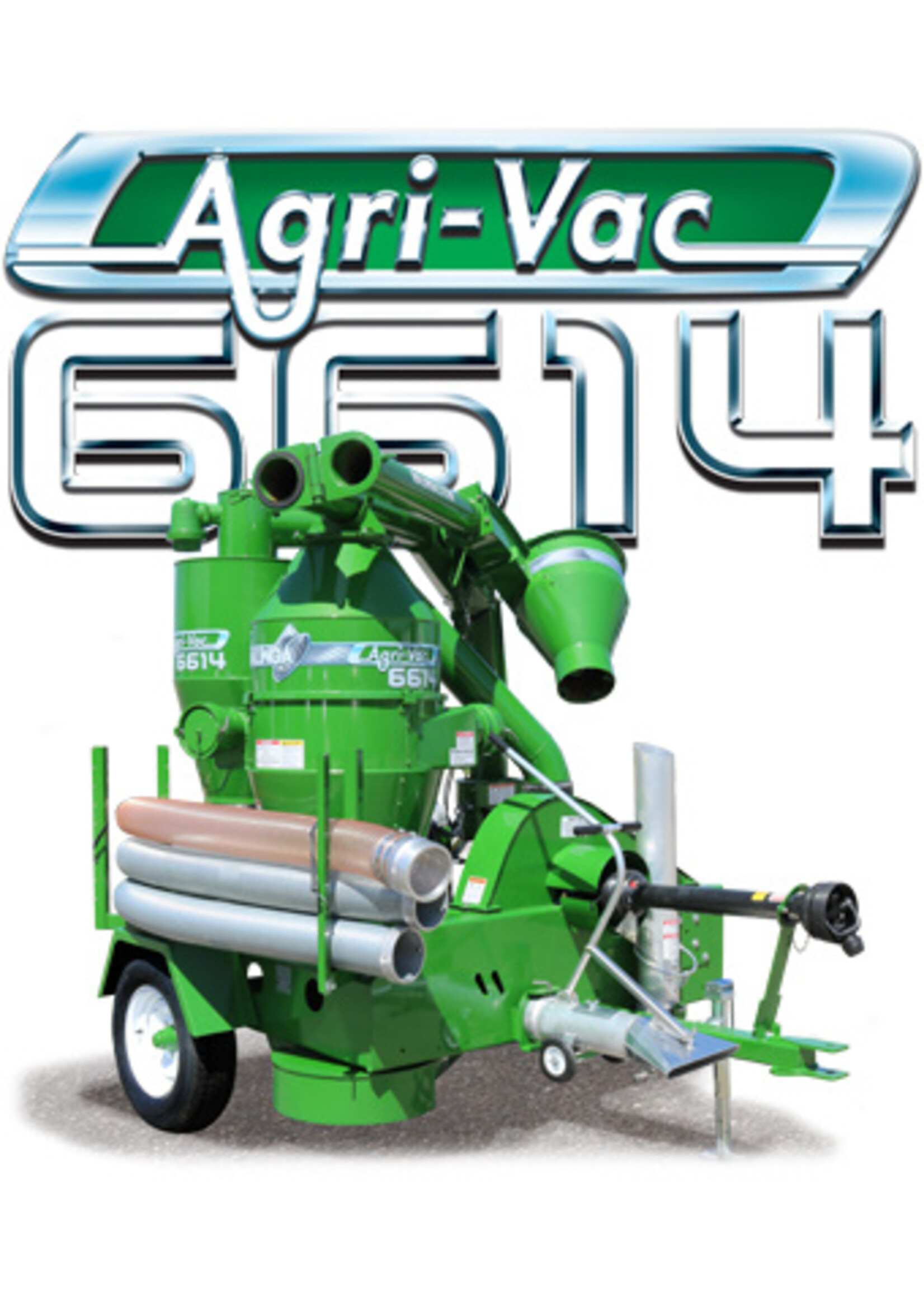

Agri-Vac 6614 DLX

C$0.00
Excl. tax

The only system you'll ever need. Gives one-person total grain-handling capability Fill or empty any storage facility being used. The Agri-Vac puts an end to legs, augers, sweeps and shovels. Grain handling has never been simpler, safer or healthier.

Walinga's popular mid-range portable PTO vac unit, the 6614 DLX (Deluxe) Agri-Vac unit transfers bulk at speeds of between 2800-4000 Bu/Hour. The feature packed 6614 DLX Agri-Vac unit includes a fully Rhino lined receiver tank and boom cyclone. DLX units also ship with a self contained hydraulic system which includes the addition of a hydraulically powered gear drive for boom rotation.

Specs

Height 95 in (241 cm)
Width 92 in (234 cm)
Length 105 in (267 cm)
Weight 3014 lbs (1370 kg)
Discharge Height 13 ft 8 in minimum (4.49 m)
HP Required 110-130 HP
PTO Speed 1000 RPM
Line Size 5 in (125 mm) & 6 in (150 mm)
Tires Two standard farm implement
Wheels 15 in (38 cm), 5 stud
Blower #614 Walinga SRT (Sound Reduction Type), Super Hardened, Positive Displacement Blower
Airlock #1618 Cast iron shell, precision machined housing, 10 vane rotor, Hardox steel tips, hydraulically driven, reversible rotation
Drive Tongue mounted drive shaft with V-type 5 groove sheaves & belts
Hydraulics Self Contained
Receiver 28 in diameter(71 cm) two piece, dual inlets
Precleaner 24" dia. (61 cm)
Safety Vacuum/Pressure relief valves

Capacities

Barley 4000 Bu / Hour
85 Tonnes Per Hour
Corn 3600 Bu / Hour
92 Tonnes Per Hour
Wheat 3200 Bu / Hour
84 Tonnes Per Hour
(Spring & Winter Wheat Capacities will vary)
Beans 2800 Bu / Hour
75 Tonnes Per Hour
