  • Agri-Vac 7816 DLX

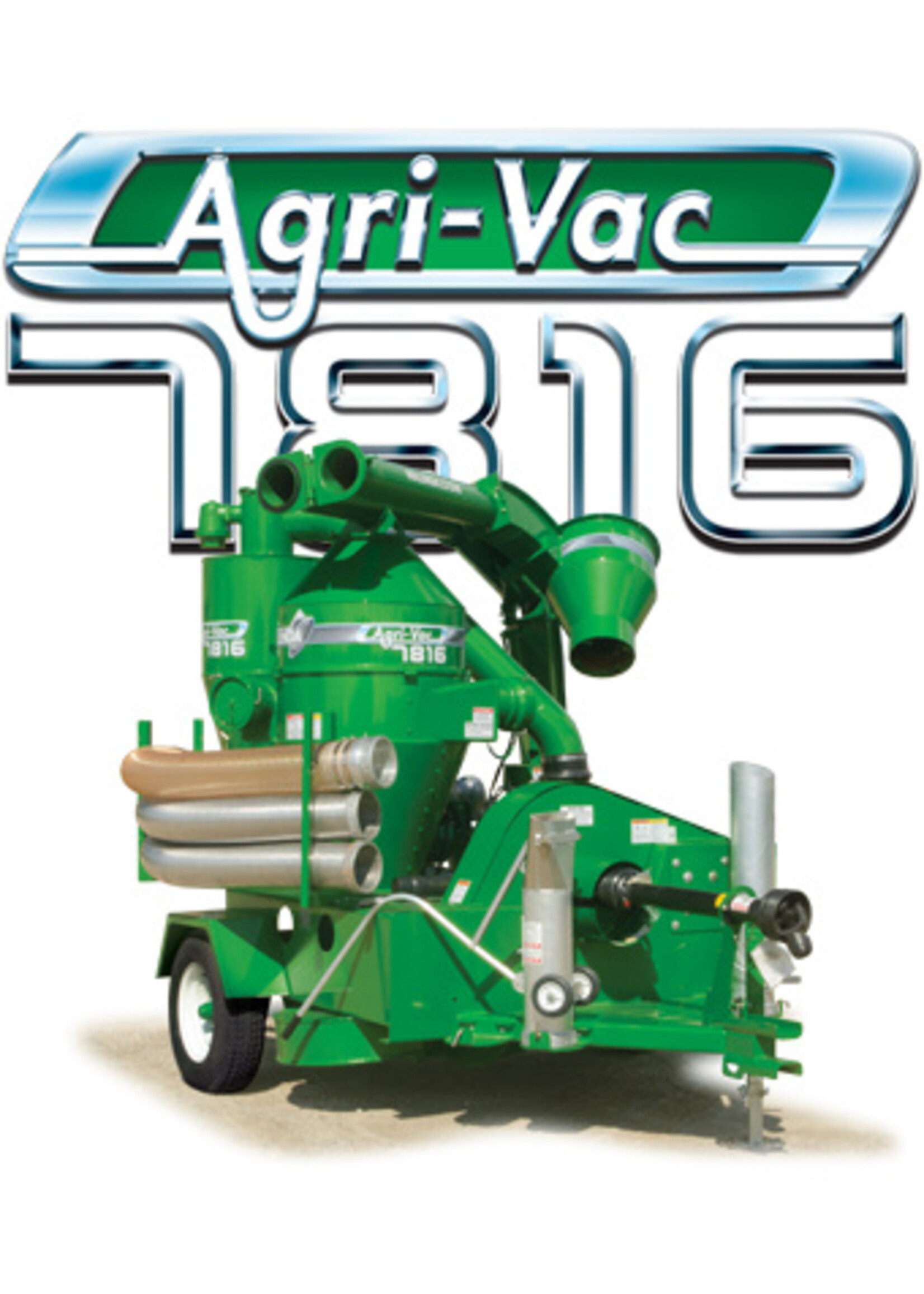

Agri-Vac 7816 DLX

C$0.00
Excl. tax

The only system you'll ever need. Gives one-person total grain-handling capability Fill or empty any storage facility being used. The Agri-Vac puts an end to legs, augers, sweeps and shovels. Grain handling has never been simpler, safer or healthier.

Walinga's larger portable PTO vac unit, the 7816 DLX (Deluxe) Agri-Vac unit transfers bulk at speeds of between 4800-5500 Bu/Hour. This feature packed 7816 DLX Agri-Vac unit includes a fully Rhino lined receiver tank and boom cyclone. DLX units ship with a self contained hydraulic system which includes a hydraulically powered gear drive for boom rotation.

Specs

Height 109" (277 cm)
Width 95" (241 cm)
Length 141" (358 cm)
Weight 5,560 lbs (2522 kg)
HP Required 150-180 hp
PTO Speed 1,000 RPM
Line Size 7" (175 mm) only
Tires Farm Implement (12.5L 15SL) 3,420 lbs max load capacity
Wheels 12.5" (32 cm) Steel Rim / 6 bolt hub
Blower #816 Walinga SRT (Sound Reduction Type), Super Hardened, Positive Displacement Blower
Airlock #2018 Cast iron shell, precision machined housing, 10 vane rotor, Hardox steel tips, hydraulically driven, reversible rotation
Drive Tongue mounted drive shaft with V-type 5 groove sheaves & belts
Hydraulics Self Contained
Receiver 32" dia. (81 cm) two piece. Dual inlets. Rhino Lined
Precleaner 23" dia. (58 cm)
Safety Vacuum/Pressure relief valves

Capacities

Barley 5500 Bu / Hour
140 Tonnes Per Hour
Corn 5500 Bu / Hour
140 Tonnes Per Hour
Wheat 5000 Bu / Hour
136 Tonnes Per Hour
(Spring & Winter Wheat Capacities will vary)
Soybeans 4800 Bu / Hour
131 Tonnes Per Hour
